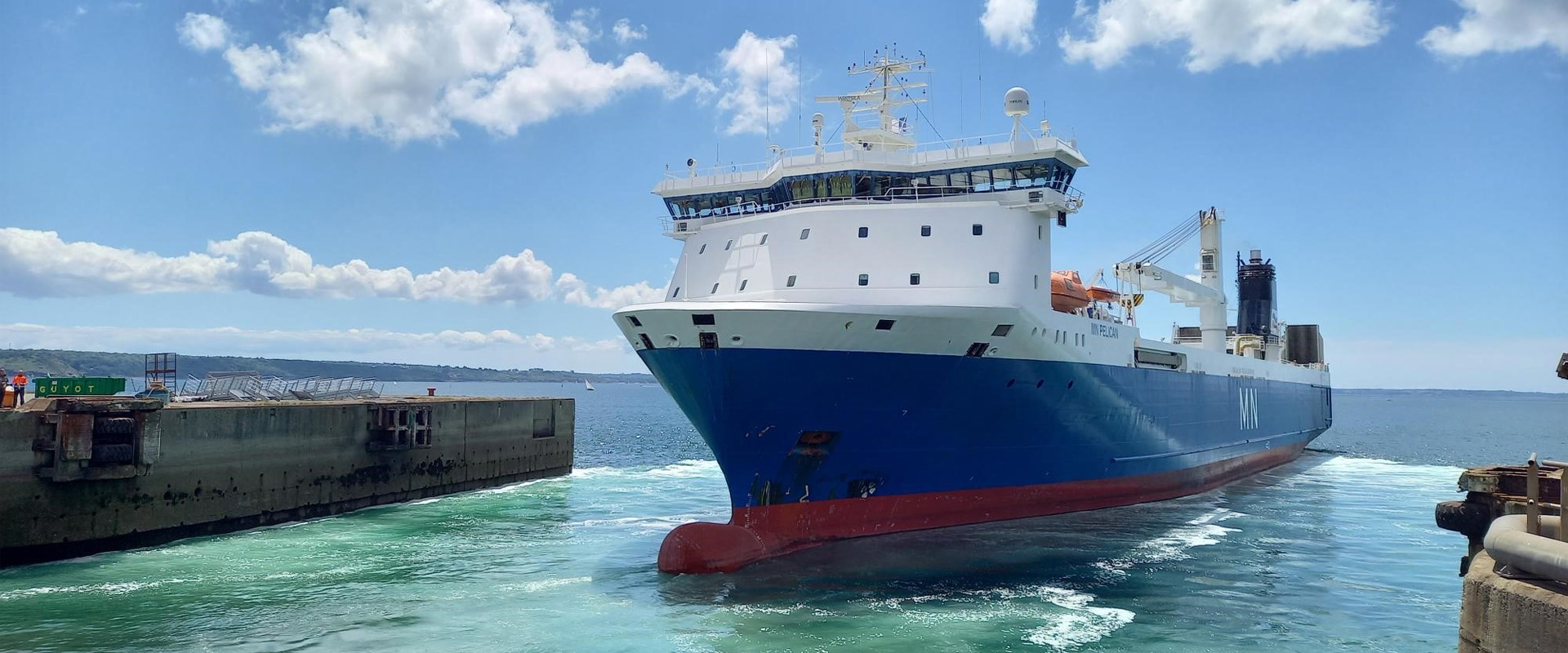

RO/RO – VESSEL
BUILT: 1999, Fosen, Norway
OWNER: Norwest Ship Management AS
CLASS: DNV, 1A1 ICE-1A* General Cargo Carrier RO/RO CONTAINER DG-P E0 DK(+)
FLAG: Norwegian
Link Neptune
Dimensions
| L.O.A | 154.50 m |
|---|---|
| Beam | 22.70 m |
| Depth Moulded to main deck | 8.70 m |
| K.T.M | 35.50 m |
| Summer DWT | 8.604 MT on 6.95 m draught |
| GT/NT | 12.076 / 3.623 UMS |
Capacity
|
Area (m2) |
Strength (MT/m2) |
Roll (1) (2) lm @ width |
Containers (3) 20′ Stack – 40′ Stack |
|
|
Weather deck |
1,938 |
3.00 |
668 m @ 2.90 m |
323* 40 MT – 156 60 MT |
|
Main deck |
2,130 |
5.00 |
687 m @ 2.95 m |
/ |
|
Tank top |
1,216 |
5.00 |
372 m @ 2.95 m |
/ |
|
Ramps |
405 |
5.00 |
51 @ 4.18 m |
/ |
|
Total |
5,725 |
1,778 m |
